High Speed Servo Liquid Filling Machine
A servo-driven filling platform built for accurate, repeatable high-speed liquid filling of glass and plastic bottles across pharmaceutical, cosmetic and food production.
- Filling Method
- Servo Piston Filling
- Filling Range
- 50–5000 ml
- Filling Accuracy
- ±0.5%
- Automation Grade
- Fully Automatic
SS 304 / Servo DrivenOverview
Built for Precision Filling at Production Scale
The High Speed Servo Liquid Filling Machine uses servo-controlled piston dosing to hold a ±0.5% fill tolerance across a 50–5000 ml operating range, on glass as well as plastic bottles.
A multi-nozzle filling head, continuous belt conveyor and PLC-driven touchscreen control make it suitable for fully automatic inline operation, while stainless steel 304 construction supports pharmaceutical, cosmetic and food production environments.
Key Features
Servo Piston Filling
Servo-controlled piston dosing for consistent volume at production speed.
±0.5% Accuracy
Tight fill tolerance across the 50–5000 ml operating range.
PLC & Touchscreen
Recipe-driven control with a touchscreen operator interface.
Multi-Nozzle System
Multi-nozzle filling head configuration for higher throughput.
SS 304 Construction
Stainless steel 304 build for pharmaceutical production environments.
Continuous Conveyor
Continuous belt conveyor for inline integration with the bottle line.
Technical Specifications
Machine data at a glance.

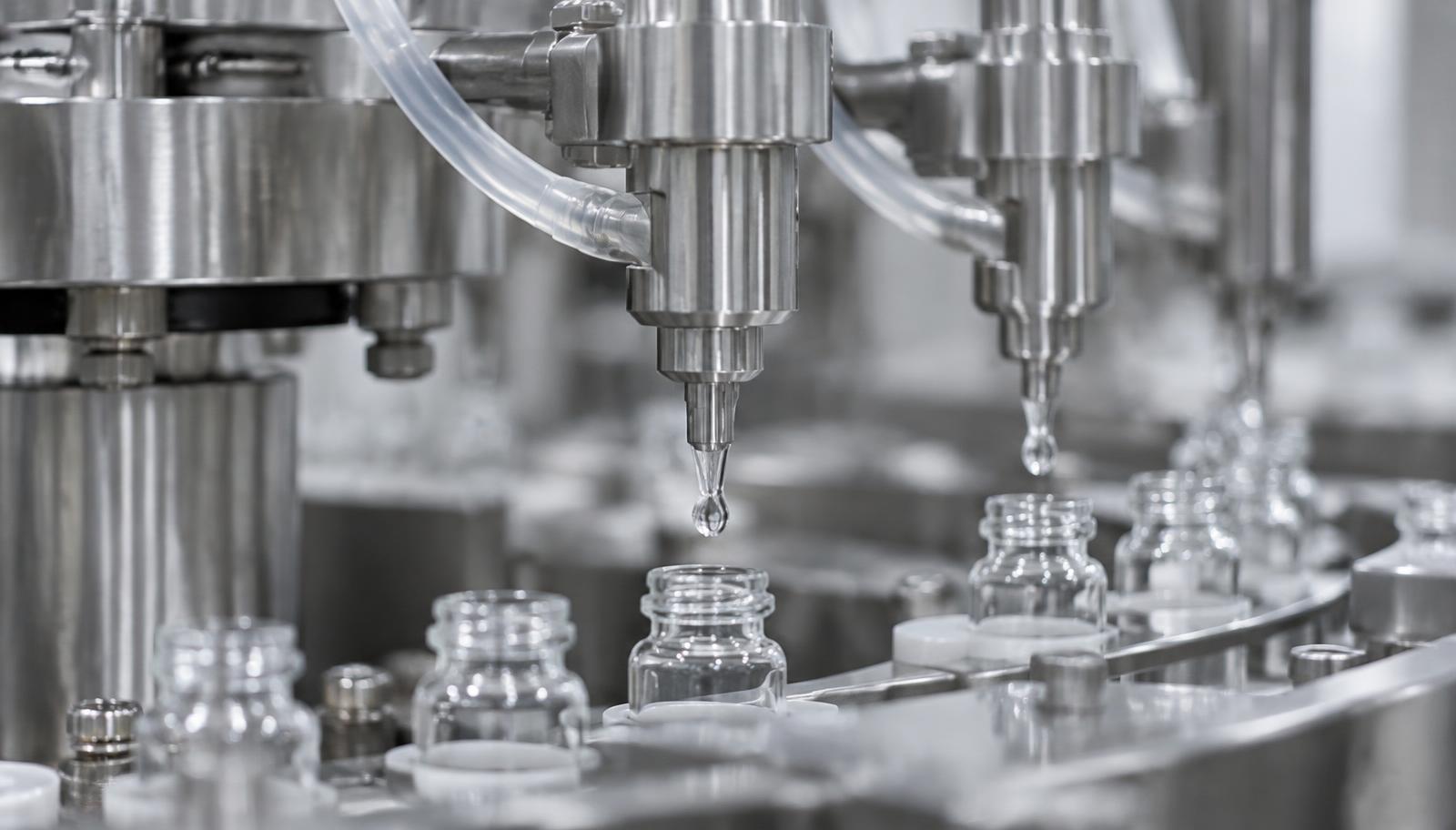

Machine Detail
Multi-Nozzle Filling HeadContinuous Belt ConveyorApplications
Pharmaceutical liquids & syrups
Cosmetic lotions & liquids
Food liquids
Viscous products
Glass bottle filling
Plastic bottle filling
How It Fits Into The Line
One machine inside a complete production sequence.
Previous Process
Bottle Cleaning & Air Washing
This Machine
High Speed Servo Liquid Filling Machine
Next Process
Screw Capping & Sealing
